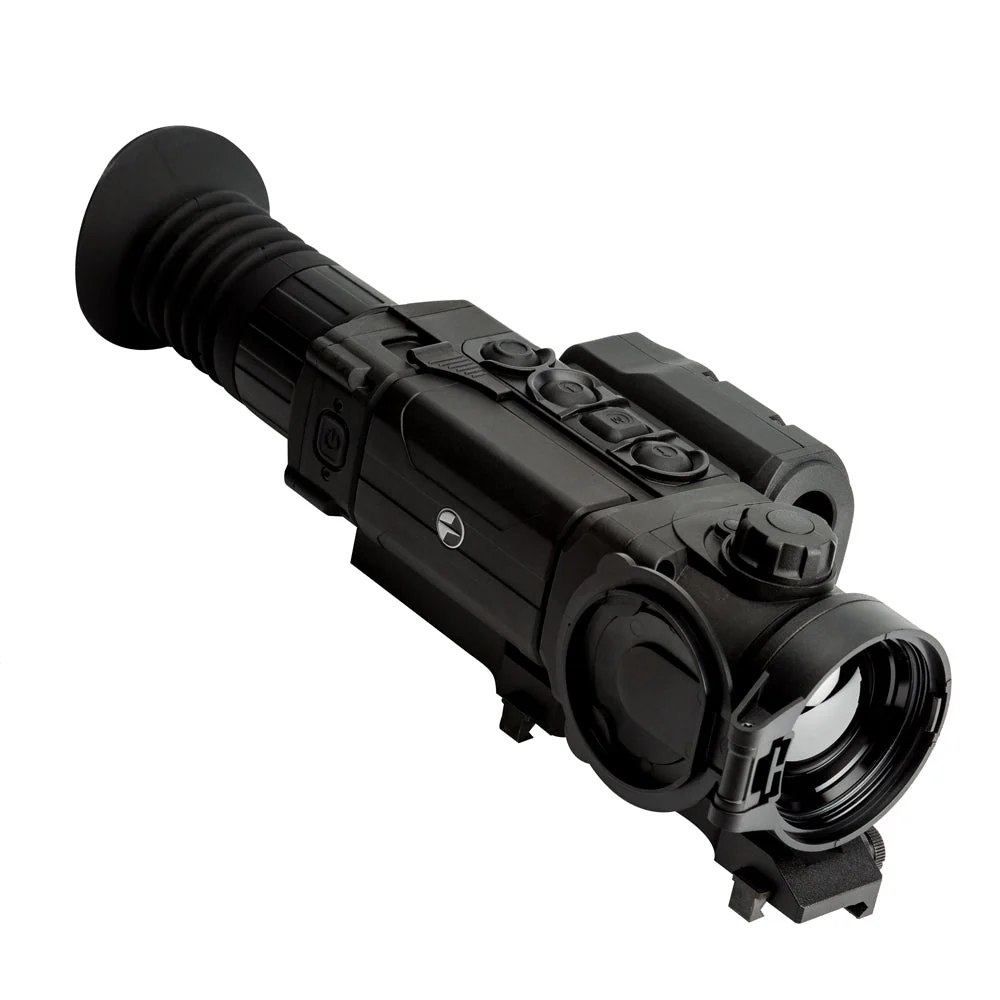

Trail 2 LRF XP50 Thermal Riflescope

Description

The next generation of thermal imaging sights has arrived with the development of the Pulsar Trail 2 LRF XP50. Utilizing a highly-sensitive 640x480 thermal sensor, the Trail 2 can distinguish miniscule temperature differences during rain, fog, dark or extremely cold conditions. With a full-color 1024x768 AMOLED display and 2x-16x magnification, every tiny detail for up to 2000 yards will appear crystal-clear – and built-in video and still-image recording with 16Gb of internal memory allows users to store footage. Its integrated laser rangefinder is state-of-the-art and features 2 modes: Single Time Measurement and Scanning Mode, allowing the shooter to adjust quickly for changing distances. The Trail 2 also boasts a 3-second startup, variable digital zoom up to 8x, 4 color reticle options, picture-in-picture mode and IPX7 waterproof protection. Additionally, the Trail 2 has Wi-Fi, compatibility with the Stream Vision app, up to 5 zeroing profiles and a recoil rate up to .375 H&H, 12-gauge and 9.3x64. For a reliable, high-tech thermal scope, the Trail 2 XP50 from Pulsar is the best in the business.

Included in Package

• Battery pack
• Battery pack charging kit
• USB cable
• Carrying case
• Hex wrench
• weaver/picatinny rail
• Cleaning cloth

Product Downloads

• Product Manual
• Reticle Catalog
• Product Specifications

Features

• 640x480 resolution - 17um pixel pitch core or 384x288 resolution - 17um pixel pitch core
• Highly sensitive thermal sensor <40mK NETD
• High definition image
• Built-in precision laser rangefinder
• Shockproof magnesium alloy housing
• Full-color HD AMOLED Display
• Built-in photo and video recorder
• 16Gb Internal memory
• Detection range up to 2000 yd
• 13 variable electronic reticles
• Instant 3 second start-up
• Zeroing profile management
• Variable digital zoom
• Picture-in-picture mode
• Stream Vision app integrates with IOS and Android devices

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Frame Rate, Hz	50
Microbolometer Resolution, pixels	640x480
Pixel Pitch, µm	17
Display Type	AMOLED
Display Resolution, pix.	1024x768
The Operation Modes	Rocks, forest, identification
Defective Pixel Repair Option	Yes
Type of Microbolometer	Uncooled Microbolometer
Integrated Wi-Fi	Yes
Stream Vision support	Yes
Integrated video recorder	Yes
NETD, mK	<40
Magnification	2 - 16 x
Field of view, m@100m	21.8
Field of view, ft@100yd	65.4
Digital Zoom	2x / 4х / 8x
Diameter, Lens, mm	42
Relative aperture, D/f'	1:1.2
Focusing Type of Distance	Objective
Eye relief (in/mm)	2 / 50
Field of View, degree	12.4
Minimum focusing distance, ft/m	16 / 5
Lens Focus, mm	50
Range of Detection	2000 / 1800 yd / m
Laser Wavelength, nm	905
Measurement Range, yd/m	1100 / 1000
Accuracy of Range Measurement, yd/m	+-1
Battery Type	B-Pack (Li-Ion)
Power Supply	3.0 - 4.2
Battery life, (with video out off), hours	8
External Power Supply	5V - Micro USB
Click value, 1 click	21 (mm@100m)
Reticle, Type	Variable electronic reticles
Number of Preloaded Reticles	10
Windage Range of Adjustment	4200/4200 (mm@100m)
Lens Material	Germanium
Body Material	Magnesium Alloy
Operating Temp,?F/?C	-13 to 122 / -25 to +50
Level of Protection (acc. to IEC 60529)	IP67 100% dustproof and submergible to 1m for 1 hour
Calibration	manual, automatic, semi-automatic
Type of Mount for Attachment of Additional Accessories	weaver/picatinny rail
Recoil Rating	.375 H&H
Waterproof	Yes
Weight, oz	25 (without batteries)
Length (in/mm)	11.22 / 292
Width (in/mm)	4.01 / 102
Height (in/mm)	2.99 / 76
